Description

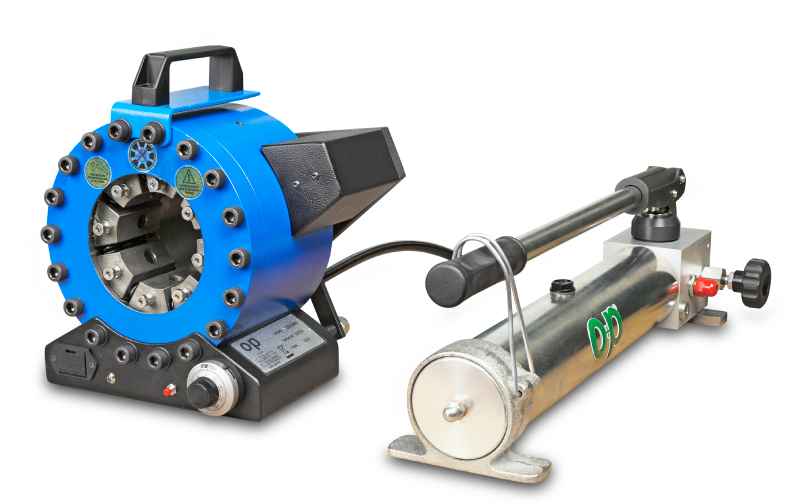

H64PM Manual Swaging Machine
Capacity: 1″ 4 Wire. (1.1/4″ 2 Wire) / Supplied complete with 8 dies sets
Lightweight, robust and simple to operate.
Ideal for swaging a wide range of hose up to 1″ 4 wire.
– manual pump separated from the machine;
– electric limit switch indicating when the crimping diameter is reached.
Technical Info
- Capacity: Up to 1″ 4 Wire Hose / 1.1/4″ 2 Wire
- Operation: Manual Hand pump
- Control: Vernier Micrometer/LED
- Crimping Range: 10 – 64mm
- Die Set: H64
- Max Opening: Die Set +15mm
- Crimping Force: 1200kN
- Dimensions: 306x260x310mm
- Weight: 43kg
