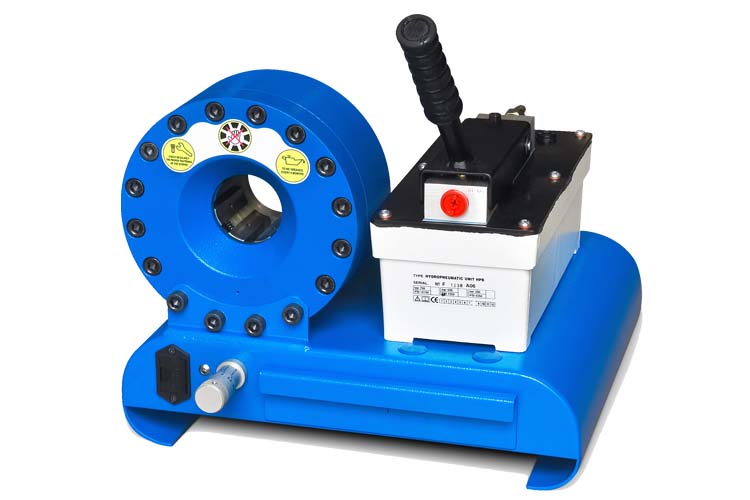

H47PI Pneumatic swaging machine

H47PI Pneumatic Swaging Machine

Capacity: 1" 2 Wire.
Lightweight, robust and simple to operate.
Ideal for swaging a wide range of hose up to 1" 2 wire.

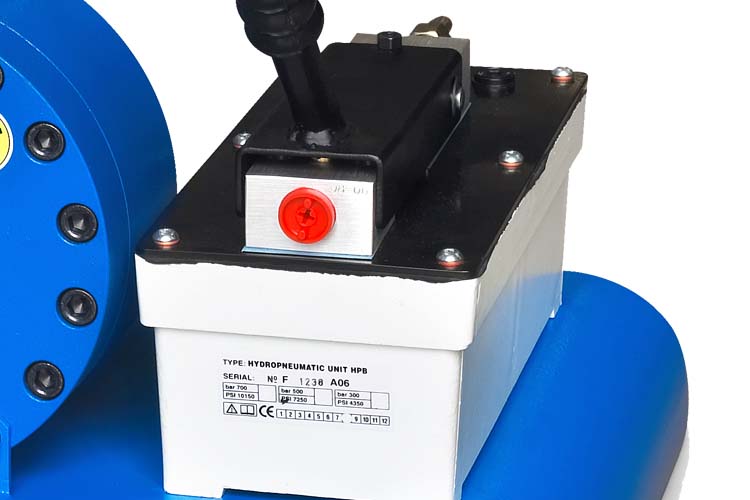

- pneumo-hydraulic pump;
- equipped with an electric limit switch indicating when the crimping diameter is reached;
- tool for dies change.

Technical Info

  • Capacity: Up to 1" 2 Wire
  • Operation: Pneumatic Air/Pump

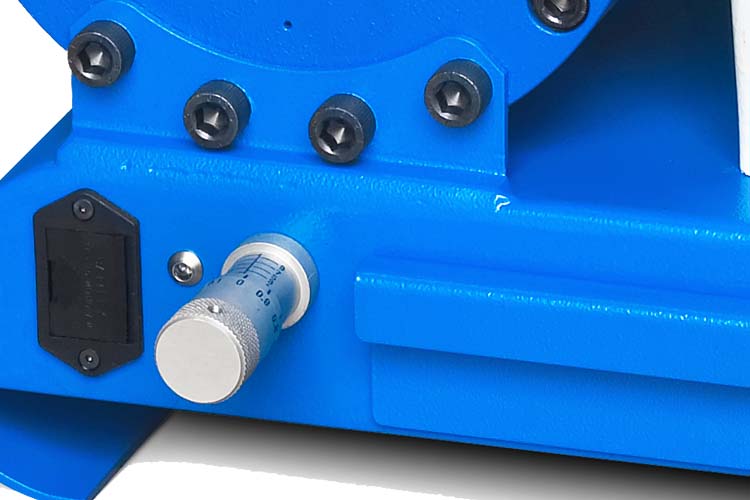

  • Control: Vernier Micrometer/LED
  • Crimping Range: 10 - 46mm
  • Die Set: H47
  • Max Opening: Die Set +20mm
  • Master Die: 39mm (Length 64mm)
  • Crimping Force: 1000kN
  • Dimensions: 380x430x400mm
  • Weight: 38kg
Download Machine Data Sheet

Buy Online

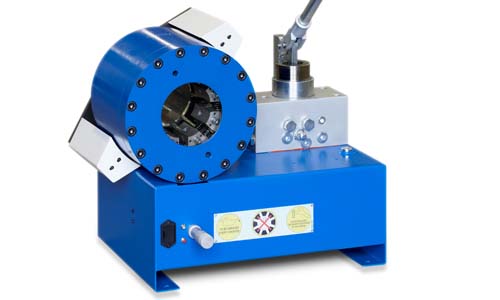

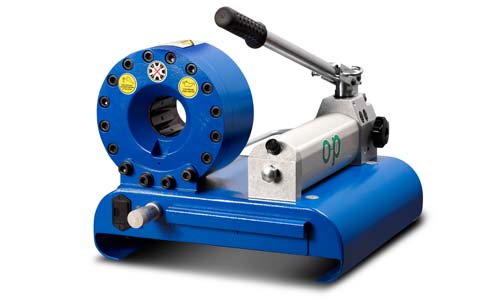

Similar Machines
