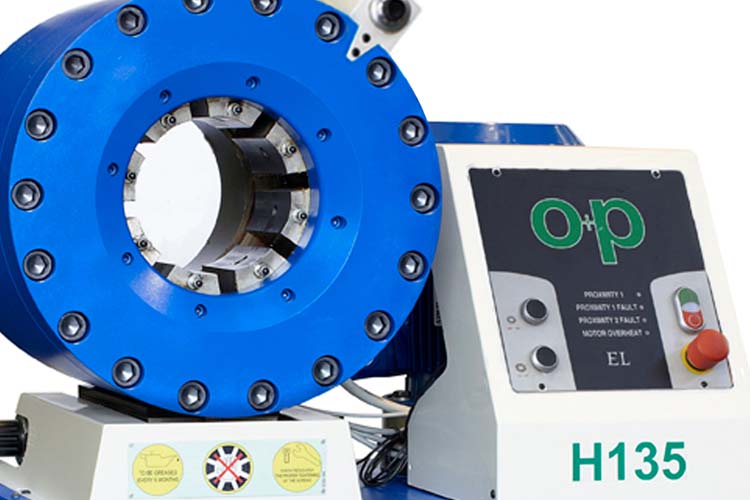

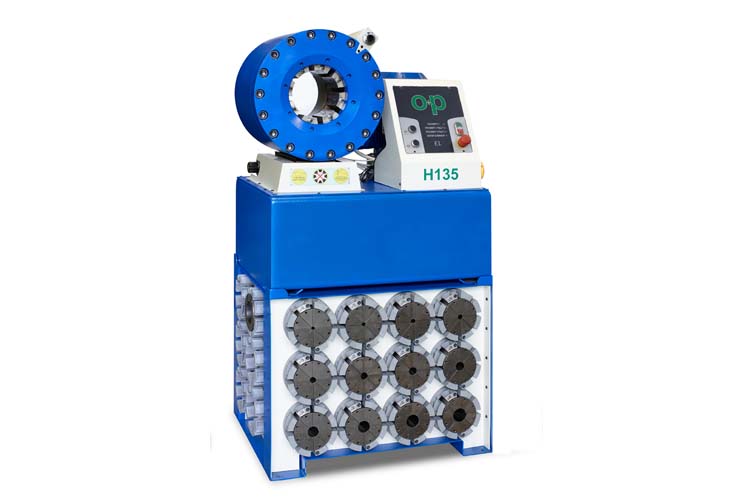

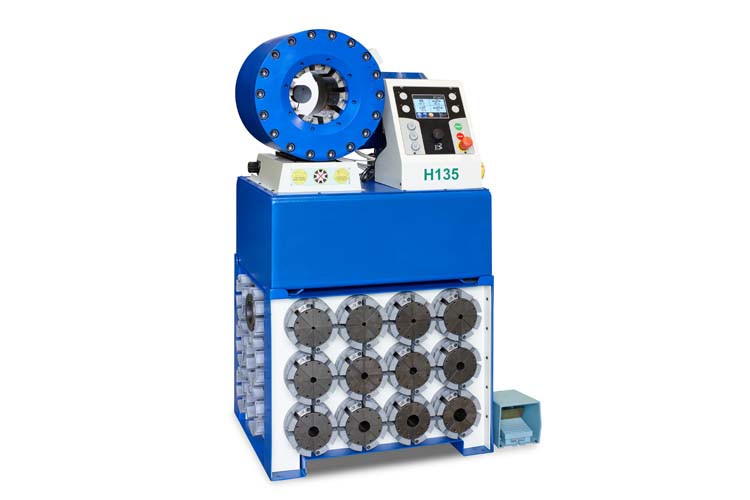

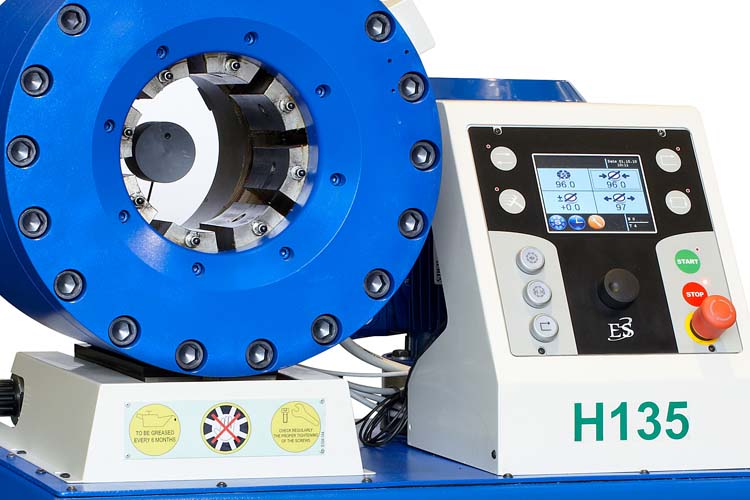

H135EL Electric swaging machine

H135EL Electric Swaging Machine

Capacity: 2" 6 Wire. (3" Industrial)
Ideal for crimping hydraulic hoses up to 2" six wire and up to 3" industrial hose.
- ideal for crimping any type of fitting;
- electronic device for managing the new electromechanical panel;
- warning LED for possible anomalies in the system;
- settable re-opening time after crimping;
- settable crimping time.

Technical Info

• Capacity: Up to 2" 6 Wire Hose / 3" Industrial
• Operation: 3 phase electric
• Control: Vernier Micrometer/LED
• Crimping Range: 10 - 120mm
• Die Set: H135
• Max Opening: Die Set +43mm
• Crimps per hour: 1110
• Crimping Force: 315kN
• Dimensions: 810x615x850mm
• Weight: 450kg
